Lightweight joint module 40-52

‹

  • Lightweight joint module 40-52
  • Lightweight joint module 40-52
  • Lightweight joint module 40-52
  • Lightweight joint module 40-52

›

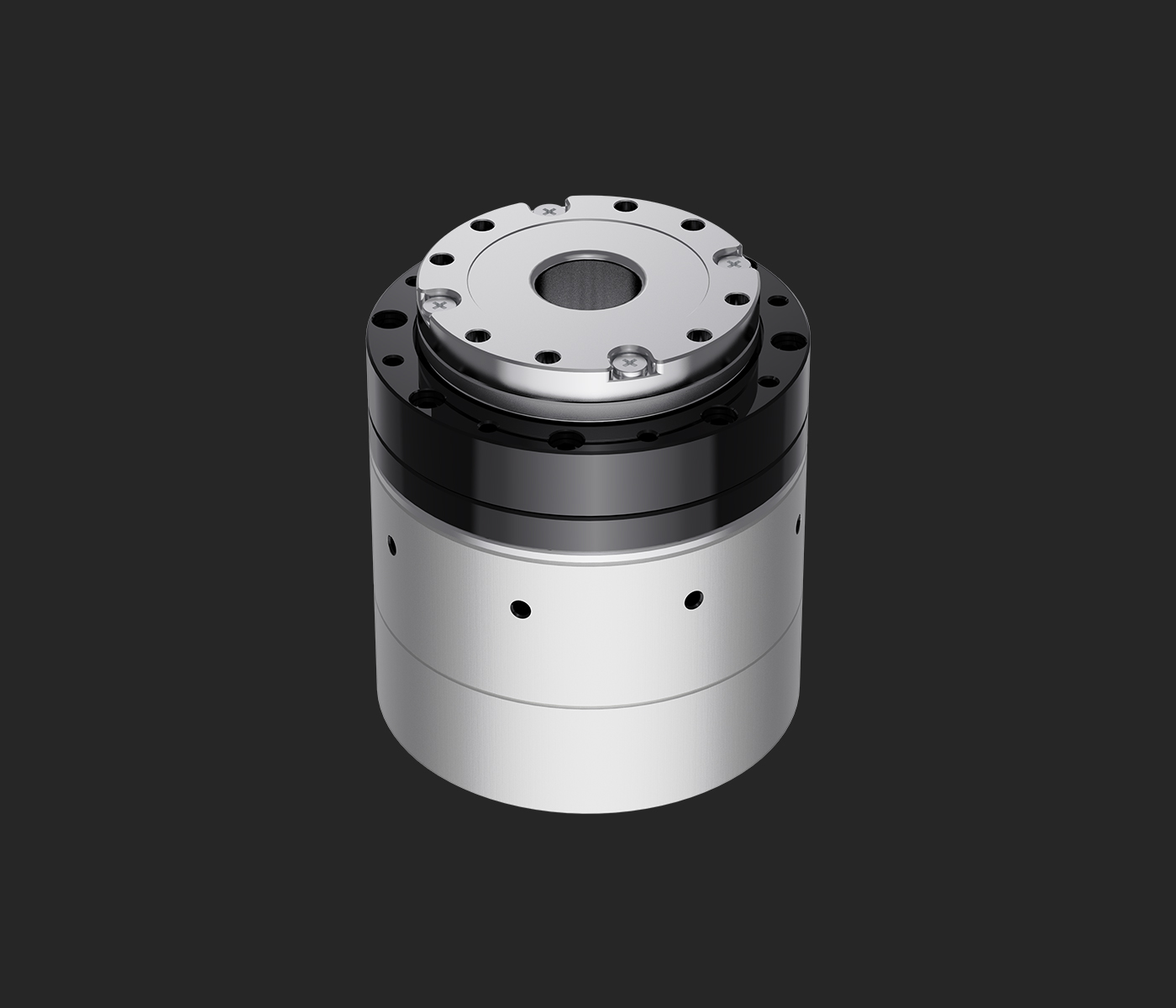

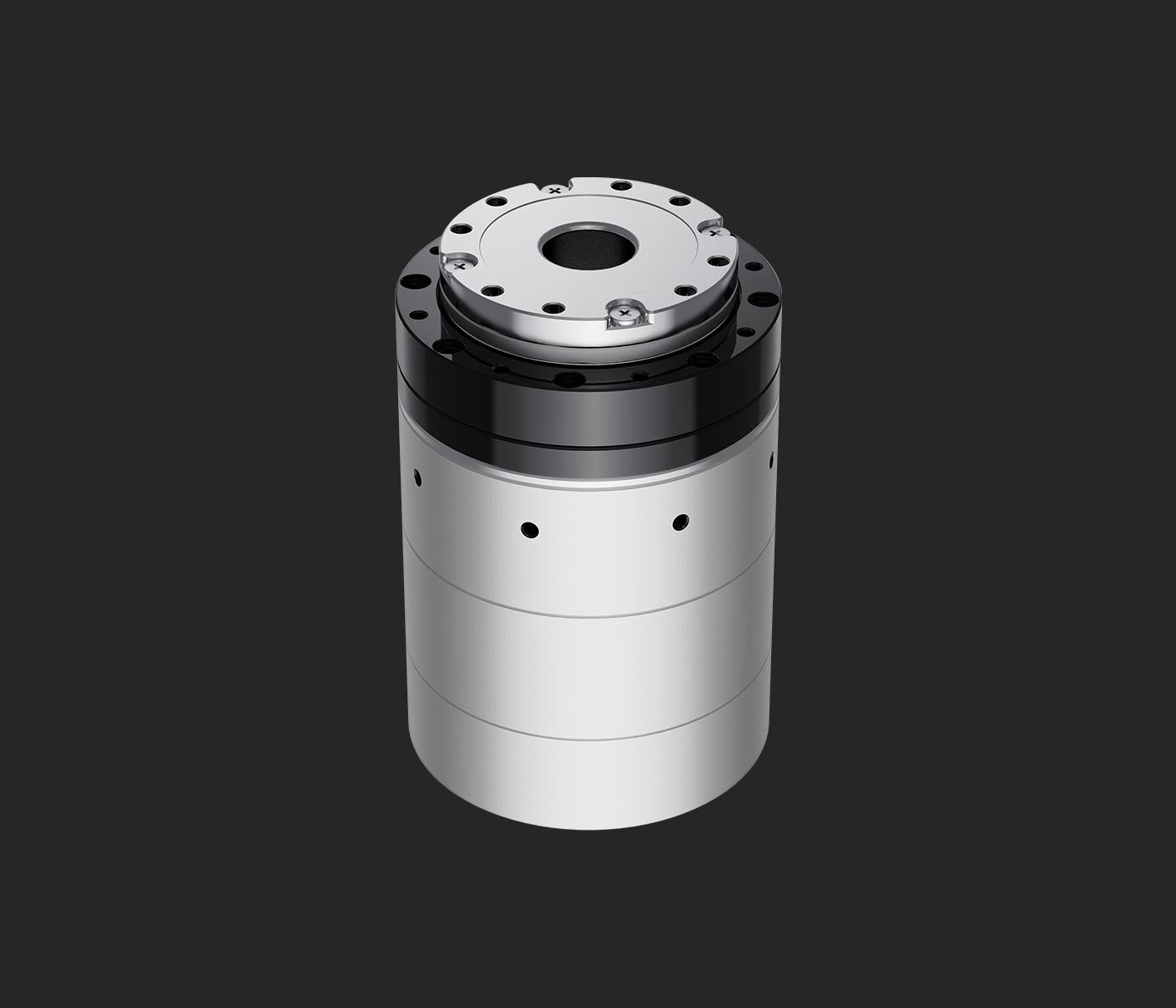

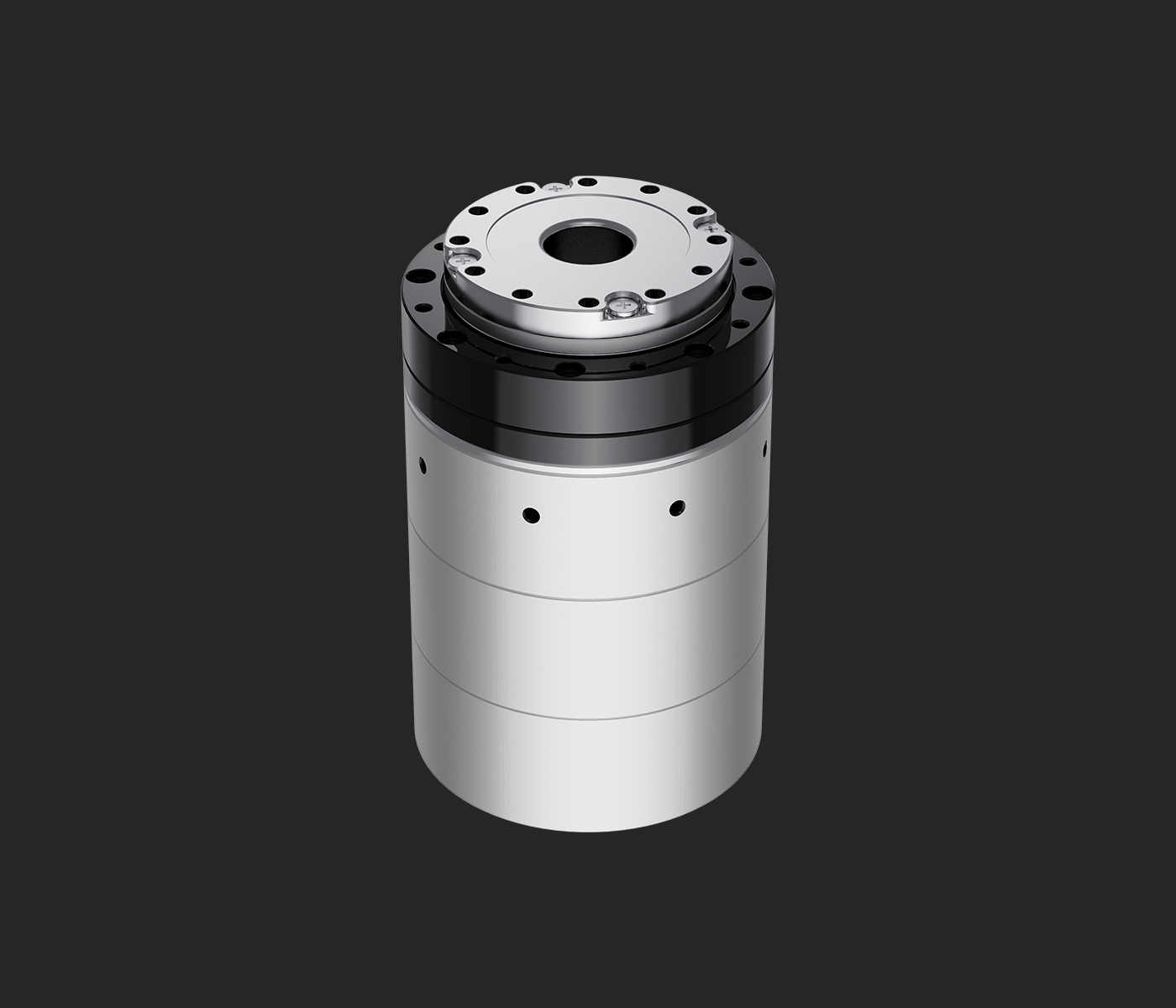

Lightweight joint module 40-52

  • Introduction

Featuring a modular, integrated, and lightweight design, this product stands at the forefront of the robotic era. Its outstanding modularity ensures flexible assembly and easy maintenance, while the lightweight structure enhances mobility and energy efficiency. The highly integrated layout optimizes space utilization and performance output, fully addressing the core demands of modern intelligent equipment. It is not only a product upgrade but also a solution tailored for the future of robotics.
Contact Now
Model 1
Model 2
Model 3
Model 4

CRA-RI40-52-PRO-2-XXX

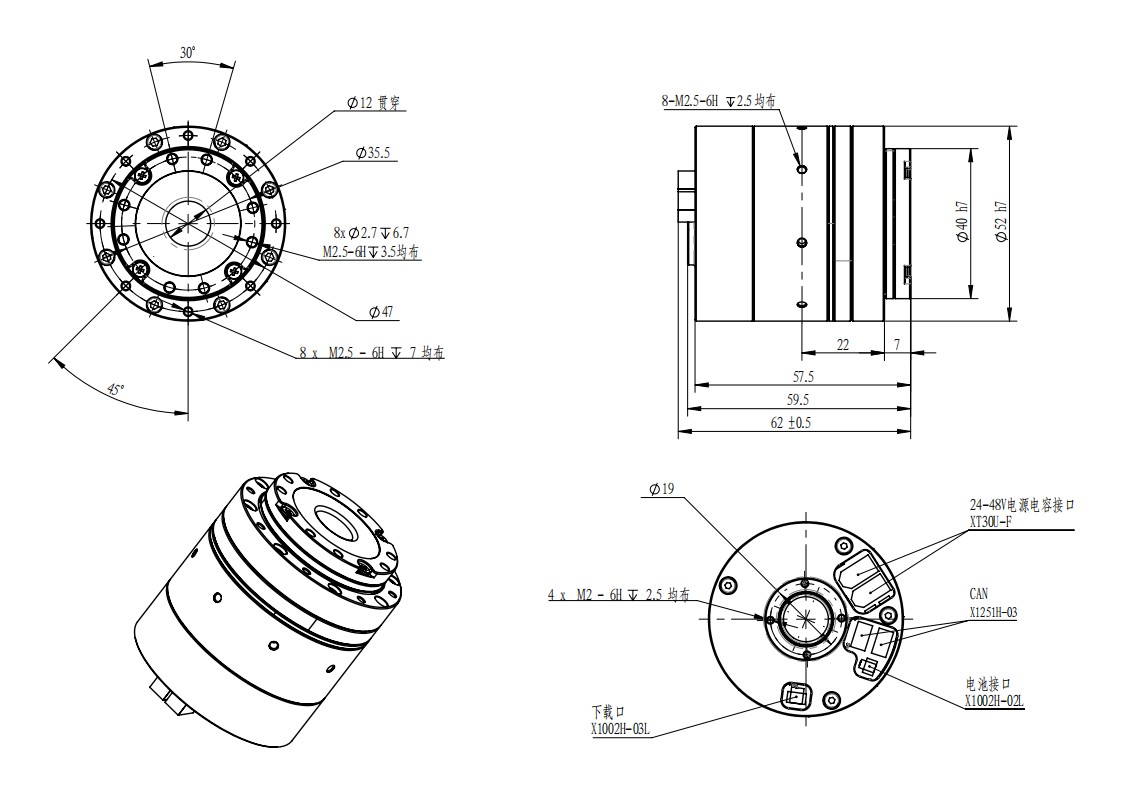

Drawing

3 CRA-RI40-52-PRO-2-XXX


Parameter table

Gear RatioPeak Torque
（N.m）		Max Allowable Torque
At Average Load
（N.m）		Rated Torque @ 2000RPM
（N.m）		Peak Speed
（RPM）		Rated Speed
(With 1/2 Rated Torque)
（RPM）		Gear Backlash
（arcsec）
518.35.53.51188040
101118.95594030

Rated Power（W）Supply Voltage（V）Max Continuous
Current（A）		Rated Current（A）Torque Constant
（N.m/A）		Encoder Resolution
（bit）		Communication Bus
9024-48320.0516CAN


Hollow Shaft（mm）Length（mm）Mass（kg）Inertia（g * c㎡）
1262±0.50.3273



CRA-RI40-52-PRO-2-XXX-B

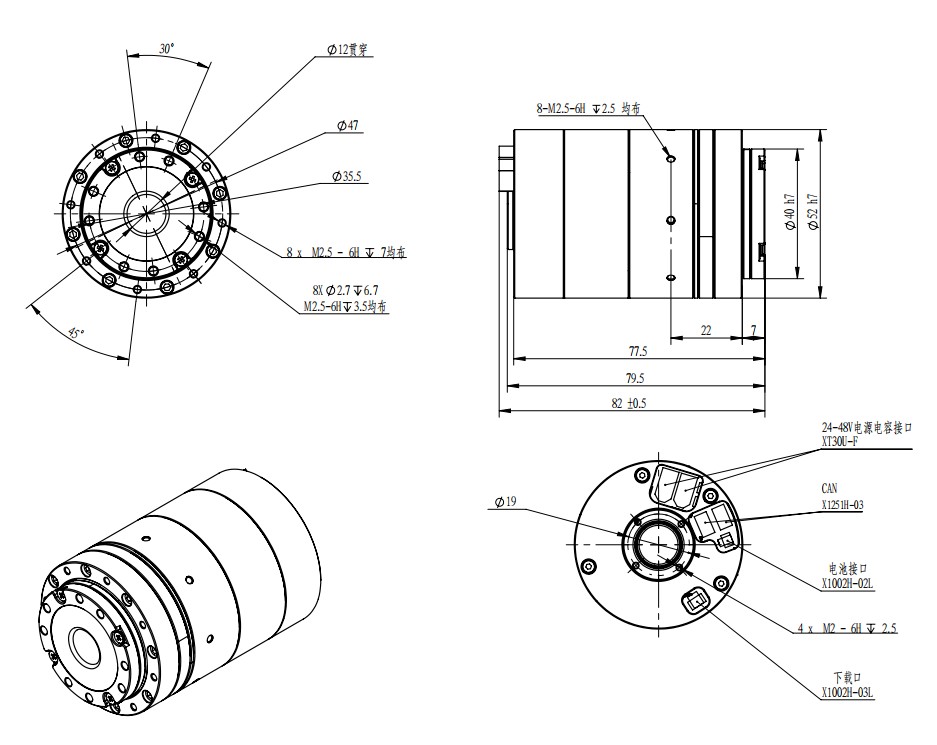

Drawing

4 CRA-RI40-52-PRO-2-XXX-B


Parameter table

Gear RatioPeak Torque
（N.m）		Max Allowable Torque
At Average Load
（N.m）		Rated Torque @ 2000RPM
（N.m）		Peak Speed
（RPM）		Rated Speed
(With 1/2 Rated Torque)
（RPM）		Gear Backlash
（arcsec）
518.35.53.51188040
101118.95594030

Rated Power（W）Supply Voltage（V）Max Continuous
Current（A）		Rated Current（A）Torque Constant
（N.m/A）		Encoder Resolution
（bit）		Communication Bus
9024-48320.0516CAN


Hollow Shaft（mm）Length（mm）Mass（kg）Inertia（g * c㎡）
1282±0.50.42116.2


CRA-RI40-52-PRO-2-XXX-2E-EC

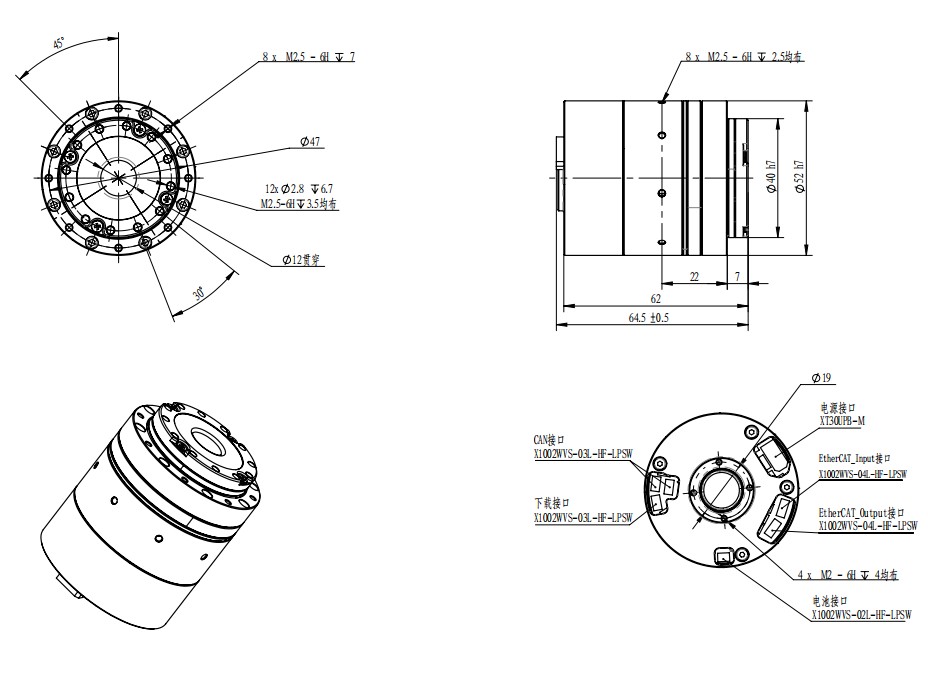

Drawing

29 CRA-RI40-52-PRO-2-XXX-2E-EC


Parameter table

Gear RatioPeak Torque
（N.m）		Max Allowable Torque
At Average Load
（N.m）		Rated Torque @ 2000RPM
（N.m）		Peak Speed
（RPM）		Rated Speed
(With 1/2 Rated Torque)
（RPM）		Gear Backlash
（arcsec）
518.35.53.51188040
101118.95594030

Rated Power（W）Supply Voltage（V）Max Continuous
Current（A）		Rated Current（A）Torque Constant
（N.m/A）		Encoder Resolution
（bit）		Communication Bus
9024-48320.0516/18CAN/EtherCAT


Hollow Shaft（mm）Length（mm）Mass（kg）Inertia（g * c㎡）
1264.5±0.50.3785.14


CRA-RI40-52-PRO-2-XXX-B-2E-EC

Drawing

Parameter table
