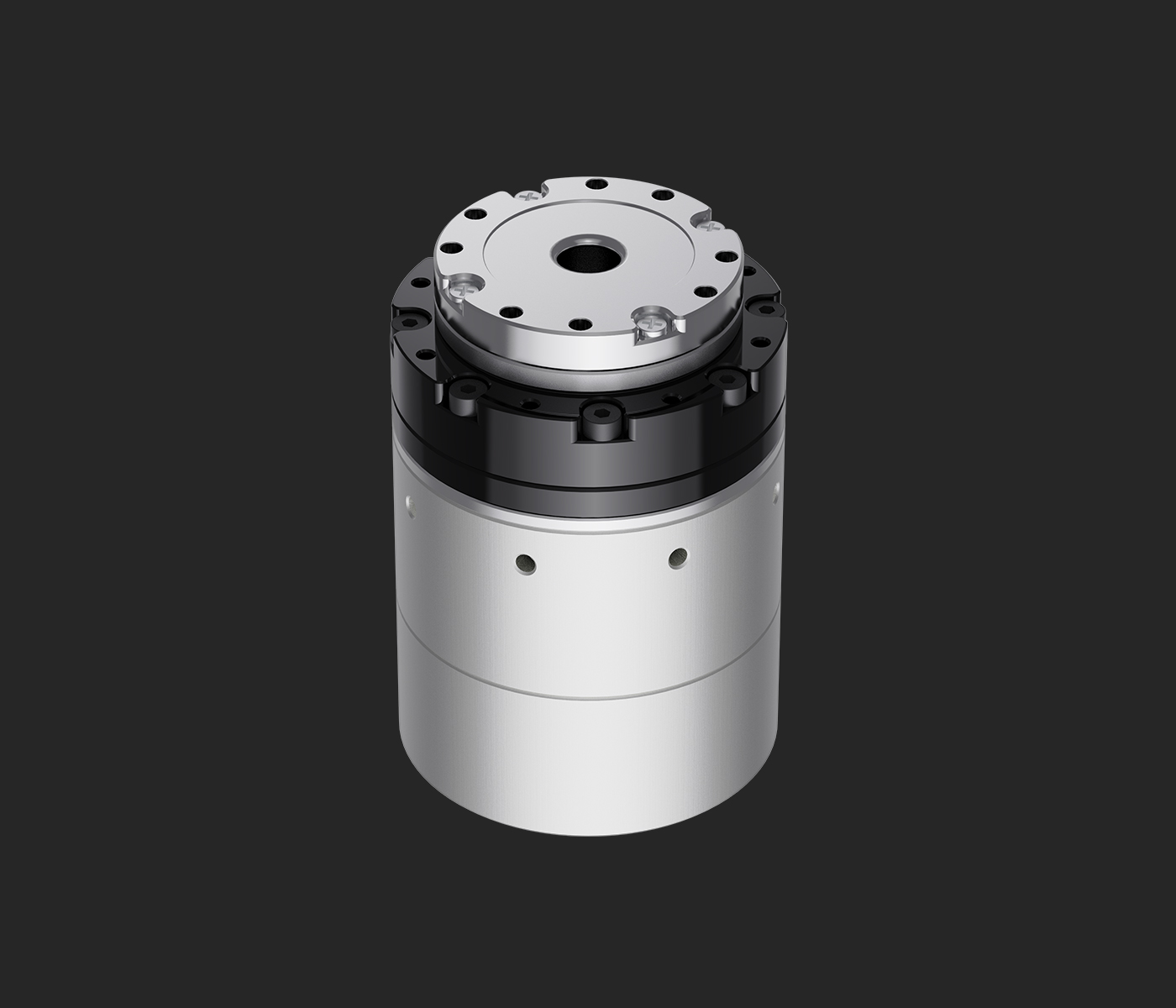

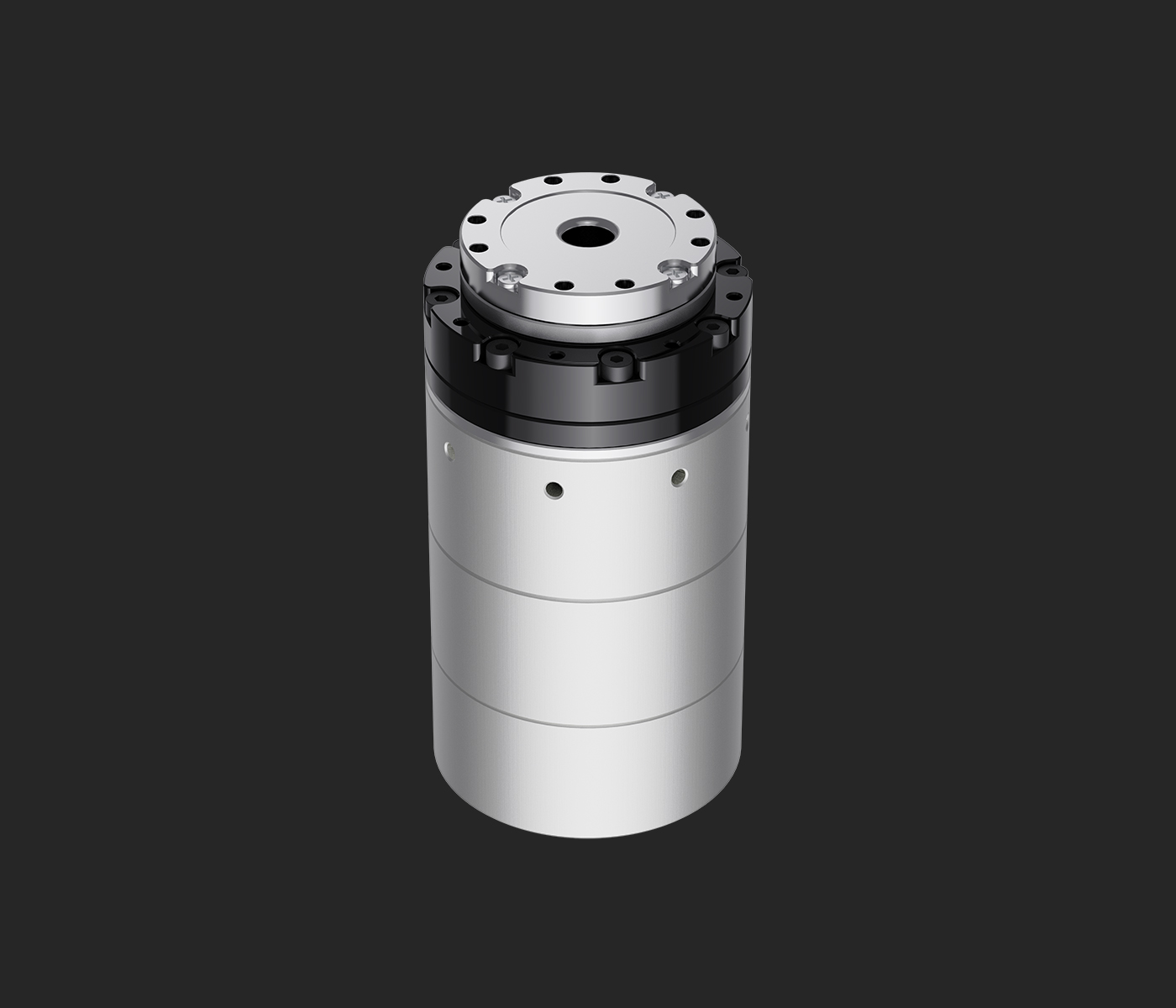

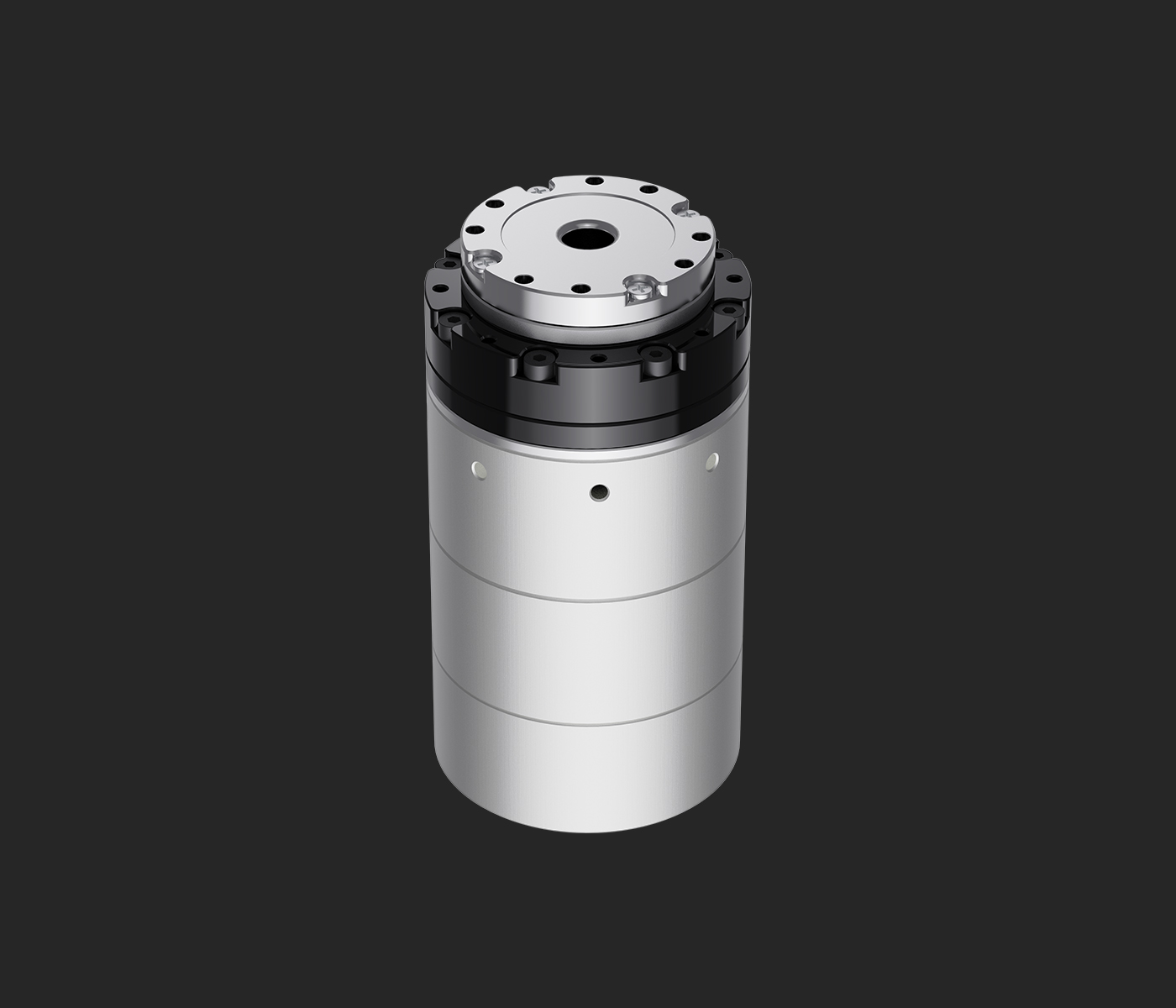

Lightweight joint module 30-40

  • Introduction

Featuring a modular, integrated, and lightweight design, this product stands at the forefront of the robotic era. Its outstanding modularity ensures flexible assembly and easy maintenance, while the lightweight structure enhances mobility and energy efficiency. The highly integrated layout optimizes space utilization and performance output, fully addressing the core demands of modern intelligent equipment. It is not only a product upgrade but also a solution tailored for the future of robotics.
Contact Now
Model 1
Model 2
Model 3
Model 4

CRA-RI30-40-PRO-2-XXX

Drawing

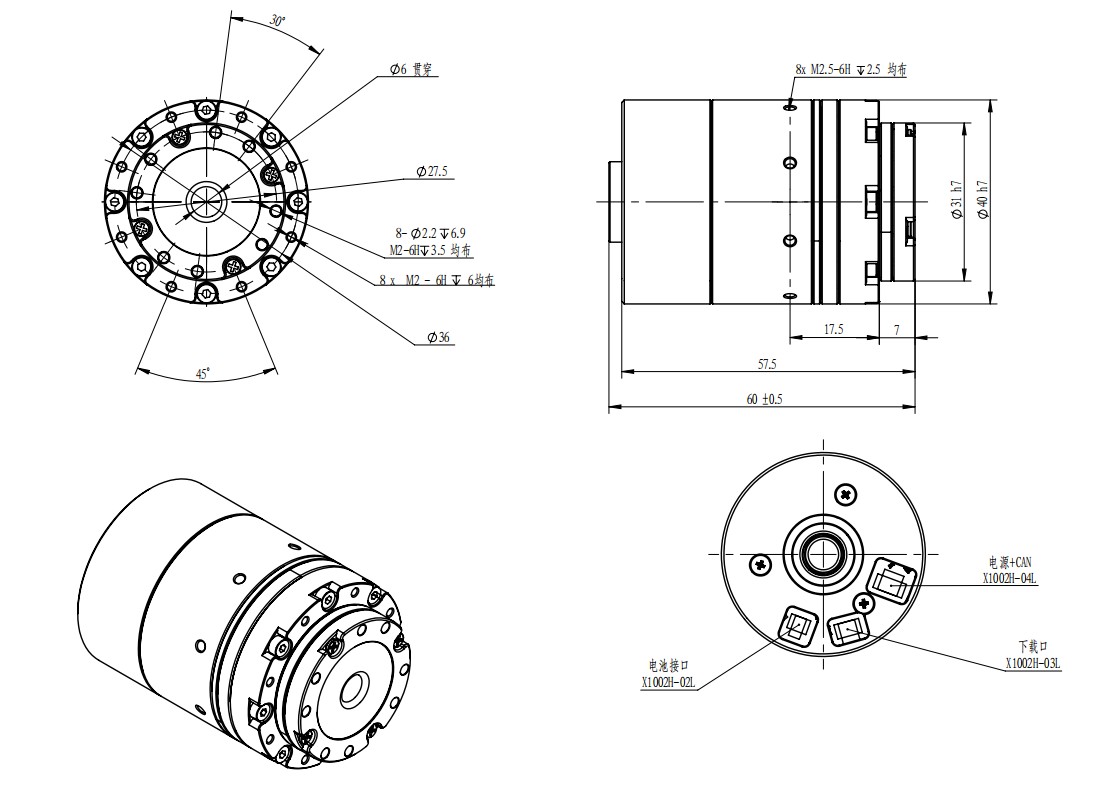

1 CRA-RI30-40-PRO-2-XXX


Parameter table

Gear RatioPeak Torque（N.m）Max Allowable Torque
At Average Load
（N.m）		Rated Torque @ 2000RPM
（N.m）		Peak Speed（RPM）Rated Speed
(With 1/2 Rated Torque)
（RPM）		Gear Backlash（arcsec）
513.32.31.81189040
1014.83.32.4594540

Rated Power（W）Supply Voltage（V）Max Continuous
Current（A）		Rated Current（A）Torque Constant
（N.m/A）		Encoder Resolution
（bit）		Communication Bus
3624-48210.02416CAN


Hollow Shaft（mm）Length（mm）Mass（kg）Inertia（g * c㎡）
660.5±0.50.1927.4


CRA-RI30-40-PRO-2-XXX-B

Drawing

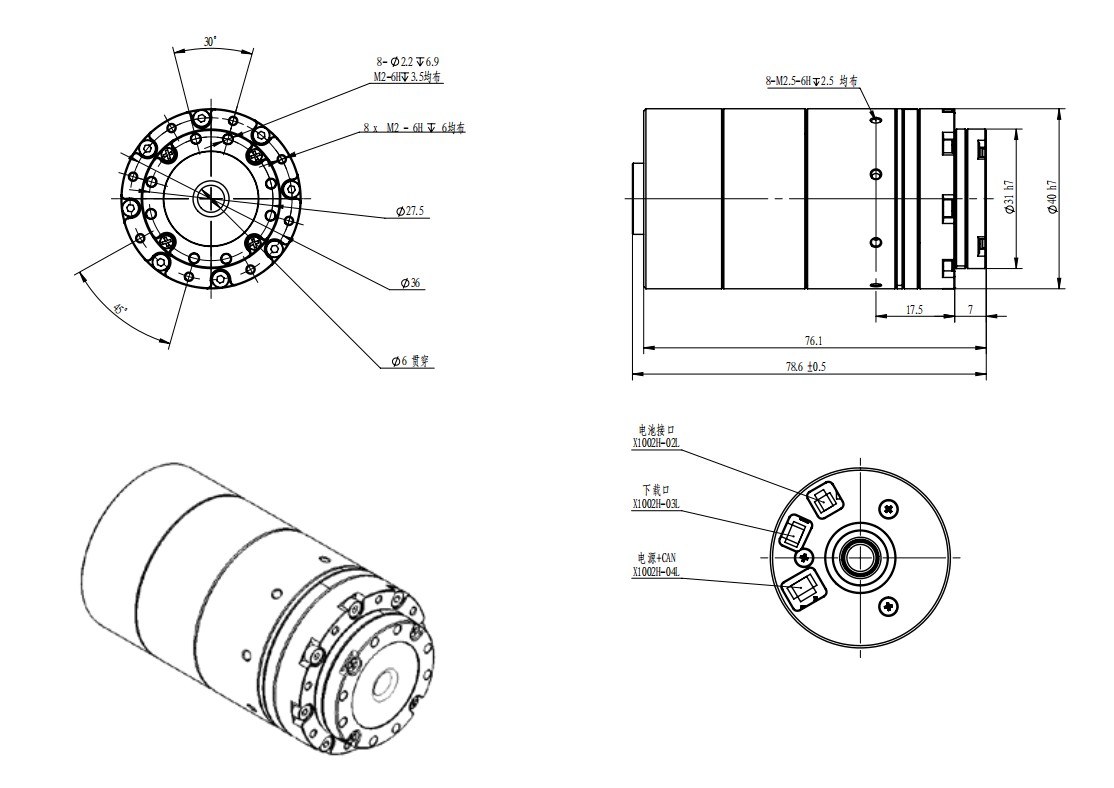

2 CRA-RI30-40-PRO-2-XXX-B


Parameter table

Gear RatioPeak Torque
（N.m）		Max Allowable Torque
At Average Load
（N.m）		Rated Torque @ 2000RPM
（N.m）		Peak Speed
（RPM）		Rated Speed
(With 1/2 Rated Torque)
（RPM）		Gear Backlash
（arcsec）
513.32.31.81189040
1014.83.32.4594540

Rated Power（W）Supply Voltage（V）Max Continuous
Current（A）		Rated Current（A）Torque Constant
（N.m/A）		Encoder Resolution
（bit）		Communication Bus
3624-48210.02416CAN


Hollow Shaft（mm）Length（mm）Mass（kg）Inertia（g * c㎡）
678.6±0.50.2745.1


CRA-RI30-40-PRO-2-XXX-2E-EC

Drawing

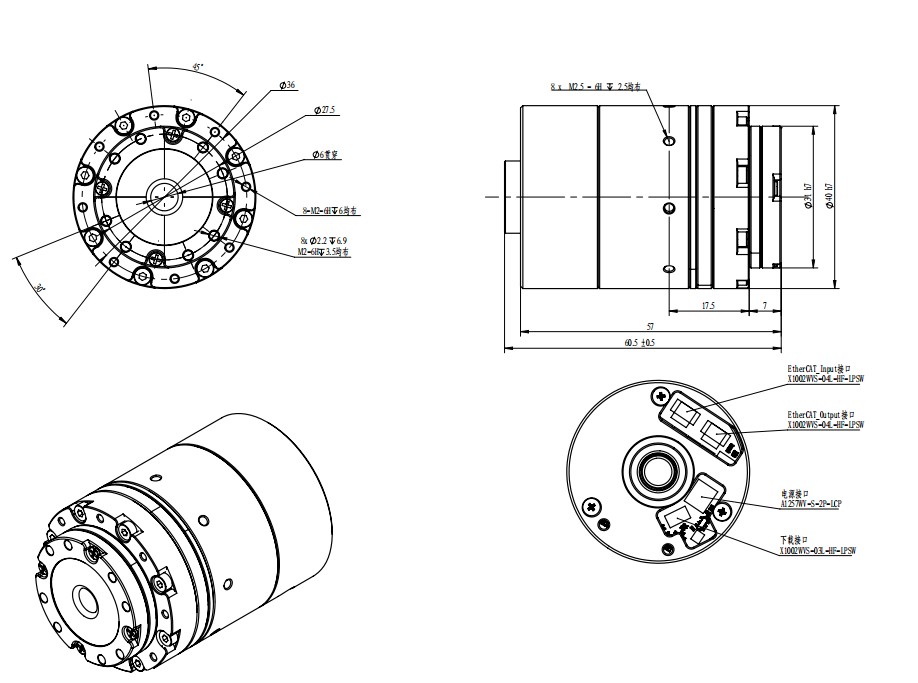

27 CRA-RI30-40-PRO-2-XXX-2E-EC


Parameter table

Gear RatioPeak Torque
（N.m）		Max Allowable Torque
At Average Load
（N.m）		Rated Torque @ 2000RPM
（N.m）		Peak Speed
（RPM）		Rated Speed
(With 1/2 Rated Torque)
（RPM）		Gear Backlash
（arcsec）
513.32.31.81189040
1014.83.32.4594540


Rated Power（W）Supply Voltage（V）Max Continuous
Current（A）		Rated Current（A）Torque Constant
（N.m/A）		Encoder Resolution
（bit）		Communication Bus
3624-48210.02416/18CAN/EtherCAT


Hollow Shaft（mm）Length（mm）Mass（kg）Inertia（g * c㎡）
660.5±0.50.2323.73


CRA-RI30-40-PRO-2-XXX-B-2E-EC

Drawing

Parameter table
