Intelligent Bionic Hand

Intelligent Bionic Hand

  • Introduction

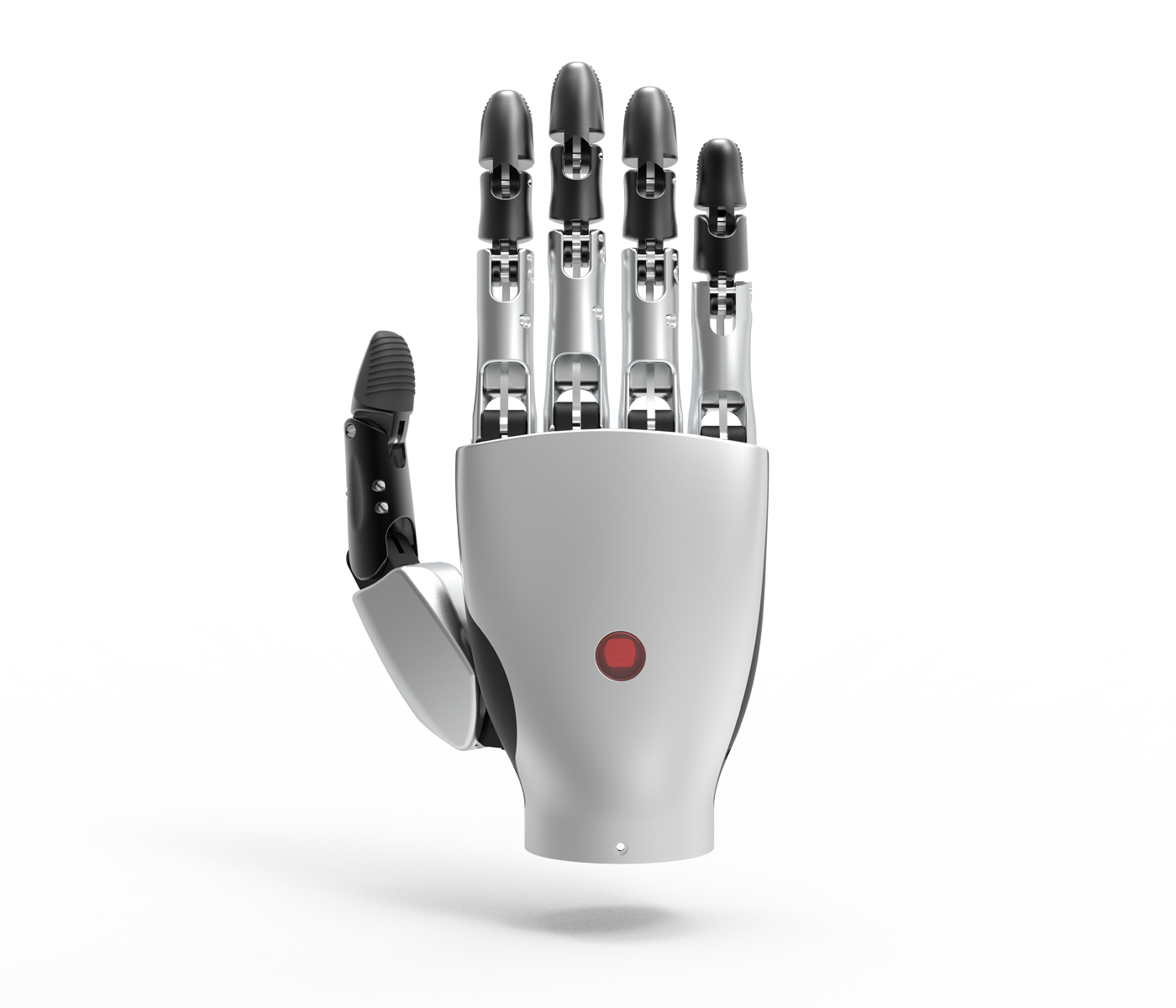

Integrating bionics, mechatronics, materials science, biomedical engineering, and information technology, and equipped with our proprietary motion-sensing control technology, the Cool Hand series moves as nimbly and intuitively as a real human hand. The hand features 6 internal actuator units, enabling each finger to move independently. The thumb is capable of motion in two directions, enabling a wide range of natural gestures and grips.
Contact Now

Key Features

Built-in Intelligent Flexible Actuator Torque Control Algorithm Enables precise force subdivision for delicate interaction
Proprietary Intellectual Property As a precision robotic component,fully backed by independently developed IP
Superior Signal Recognition & Response Speed Significant competitive advantage in reaction time and reliability
Multi-Joint Coordinated Control Achieves fine manipulation with ease across complex tasks


TECHNICAL SPECIFICATIONS

Dimensional Specifications


DimensionLabelValue
Palm WidthA80 mm
Maximum Hand WidthB132 mm
Total Length (incl. fingers)C205 mm
Finger LengthD97 mm
Thumb Base to Bottom of PalmE132 mm


Force Parameters


ParameterValue
Fingertip Force10 N
Lateral Finger Force8 N
Palm Traction Force80 N
Closing Grip Force40 N
Thumb Force12 N


Electrical & Mechanical Parameters


ParameterValue
Degrees of Freedom6
Weight480 g
Operating Voltage7.4 V
Static Current 0.1 A
0.1 A
Maximum Current3 A
