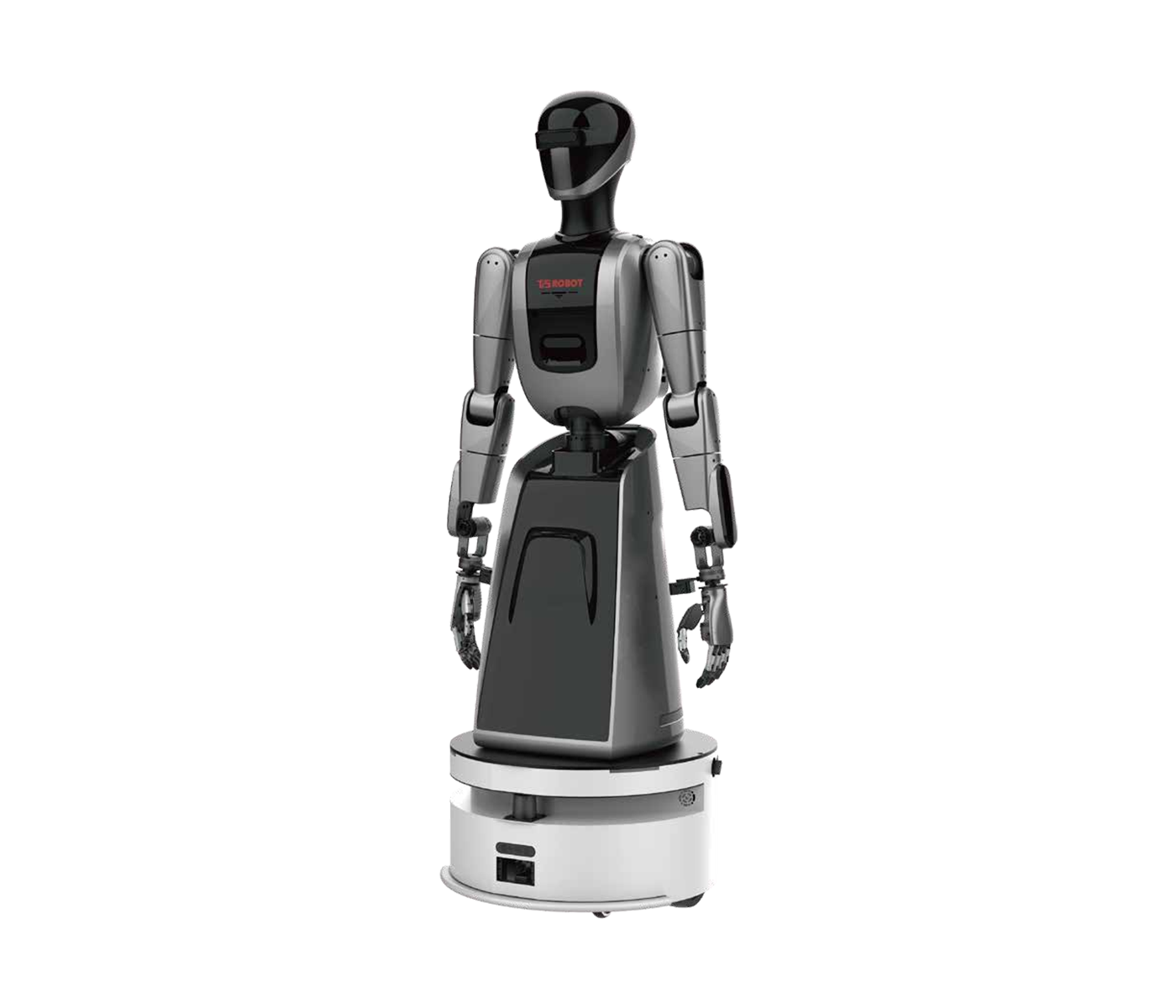

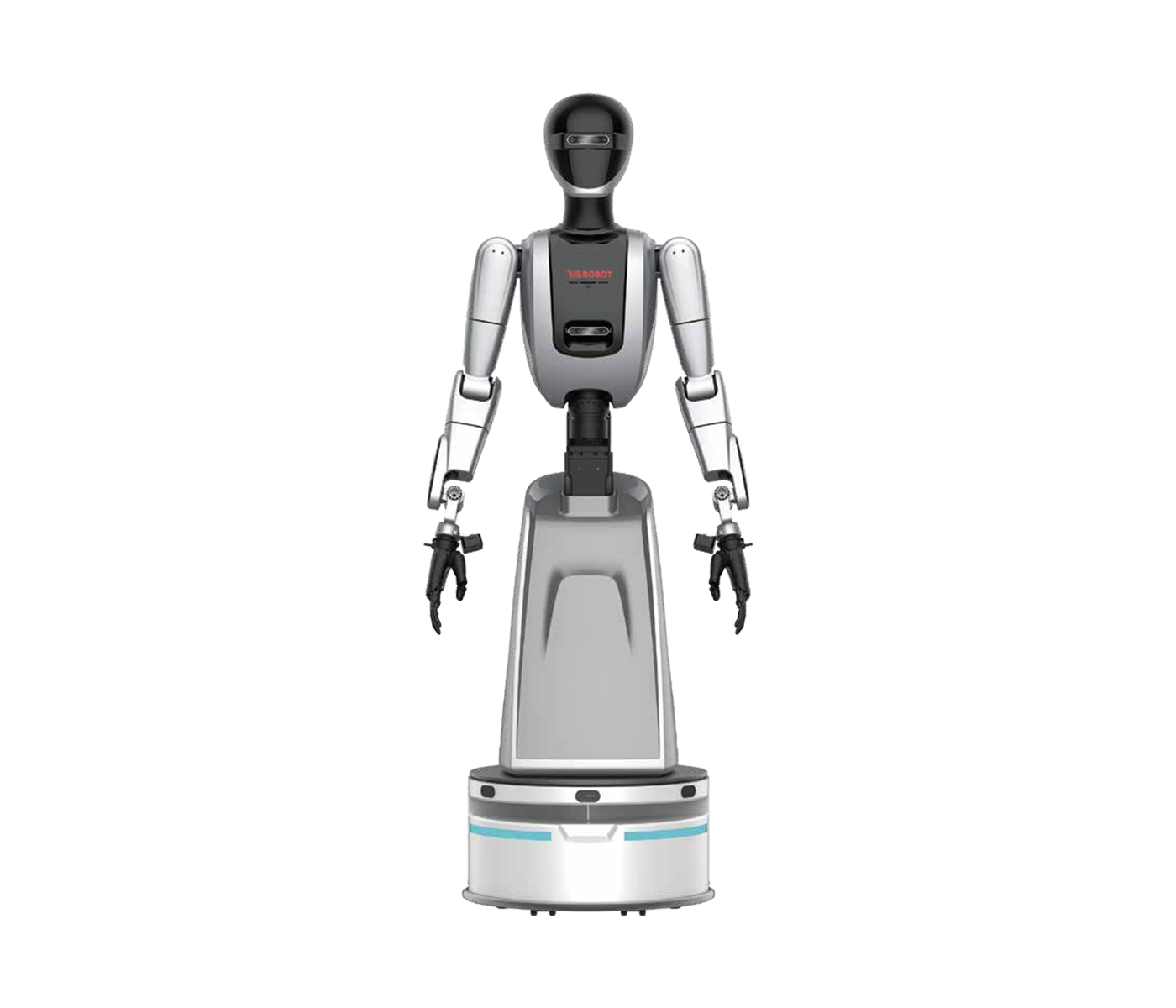

T170D

‹

  • T170D
  • T170D

›

T170D
  • Introduction
Specializing in the R&D and manufacturing of intelligent robotic products, as well as intelligent manufacturing services, and providing specialized core components for humanoid robots.
Contact Now

Drawing

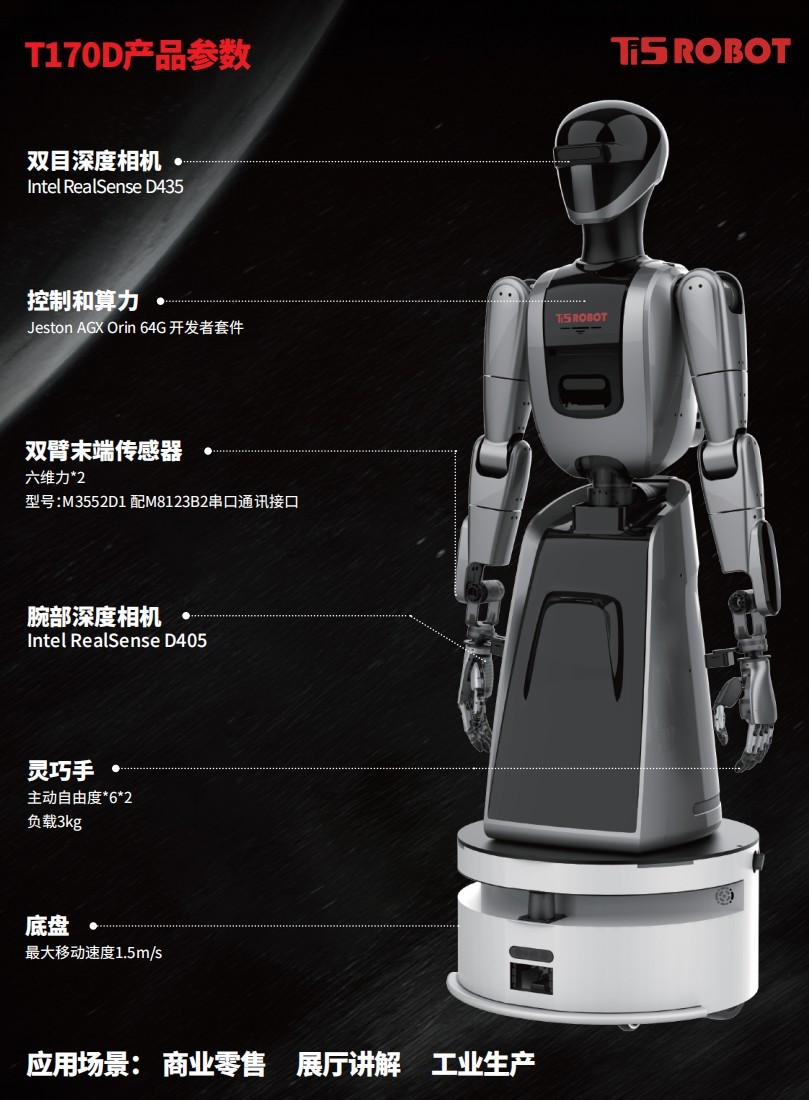

1779686535765

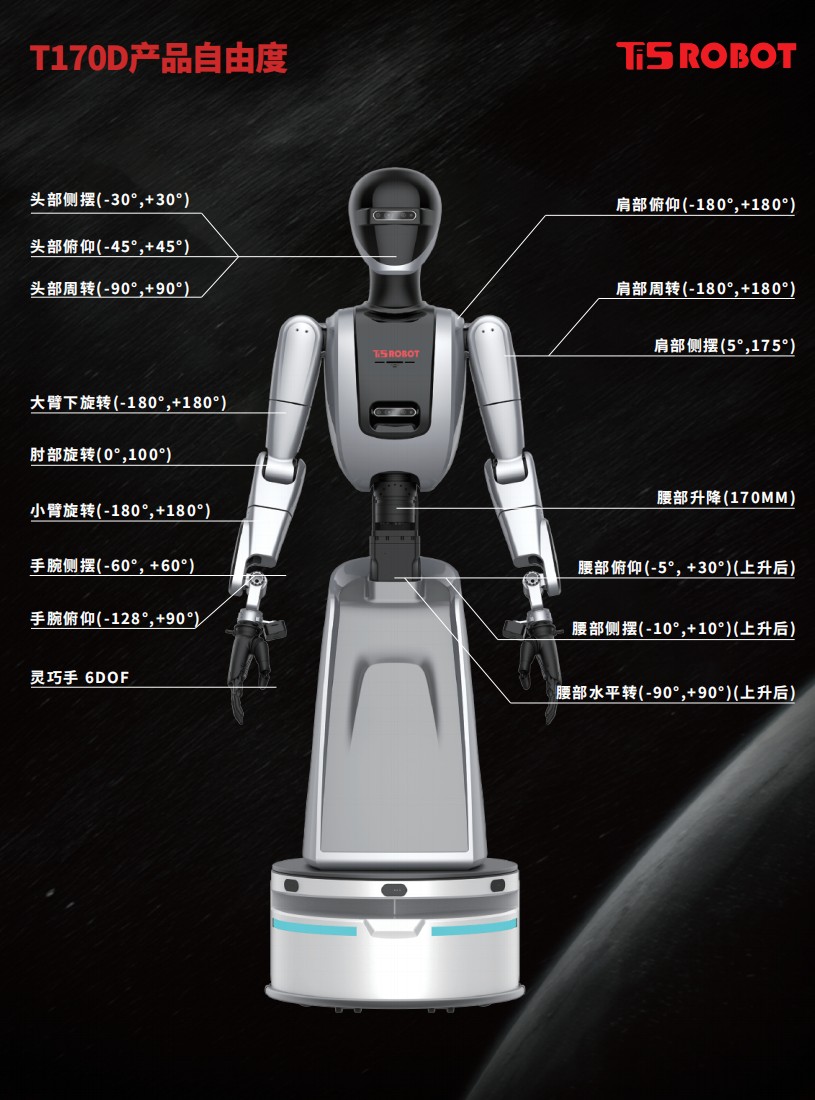

1779686467888

1779437477681


Parameter table

ModelT170D Standard Model170D Flagship Model
Total height1.5m + 16cm lifting height1.5m + 16cm lifting height
gross weight96kg96kg
Arm span1.35m1.35m
Total number of active degrees of freedom2121
Single-arm load2-3KG2-3KG
End-effector repeatability≤0.3mm≤0.3mm
Dexterity of hand active freedom66
Hand load0.5KG2-3KG
Dexterous Hand ModelTH-RH-1-L/RHigh-precision dexterity hand
Joint actuator typeCAN and ECCAN and EC
Joint reducer typeharmonicharmonic
Joint encoder resolution18bit18bit
Joint sensor type/Six-dimensional force *2
chassisHigh-performance wheelsHigh-performance wheels
Chassis Mobilitymaximum navigation speed1.5m/smaximum navigation speed1.5m/s
Number and type of input/output portsUSBEthernet port, charging porttype-cUSBEthernet port, charging porttype-c
Software AlgorithmDual-arm APIDual-arm API
MaterialStructure: Aluminum alloy, etc. Appearance: ABS, etc.Structure: Aluminum alloy, etc. Appearance: ABS, etc.
Visual perceptionHead: Intel RealSense D435*1; Wrist: Intel RealSense D405*2Head: Intel RealSense D435*1 Wrist: Intel RealSense D405*2
Control and computing powerJeston OrinNano 8G*1Jeston AGXOrin 64G Developer Kit ARM Platform
Communication ProtocolJoint CAN and EC, hand485Joint CAN and EC, hand 485
