T170C

 T170C
  • Introduction
Specializing in the R&D and manufacturing of intelligent robotic products, as well as intelligent manufacturing services, and providing specialized core components for humanoid robots.
Contact Now

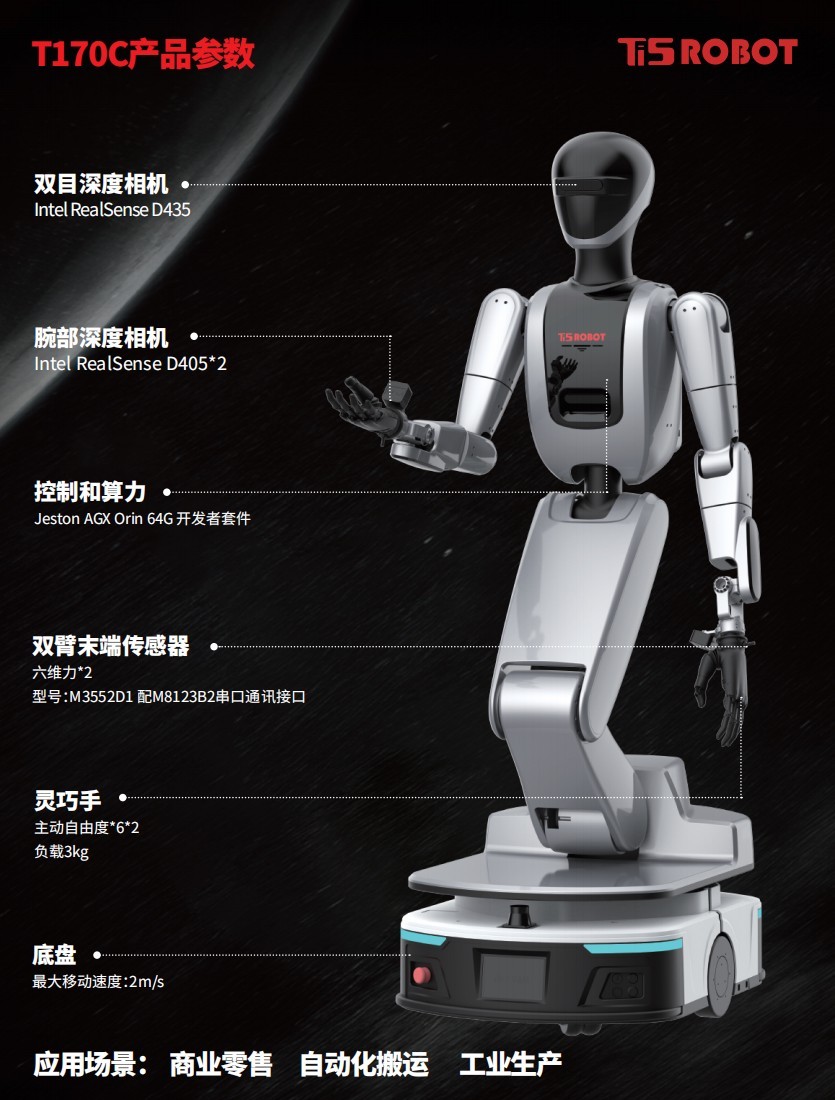

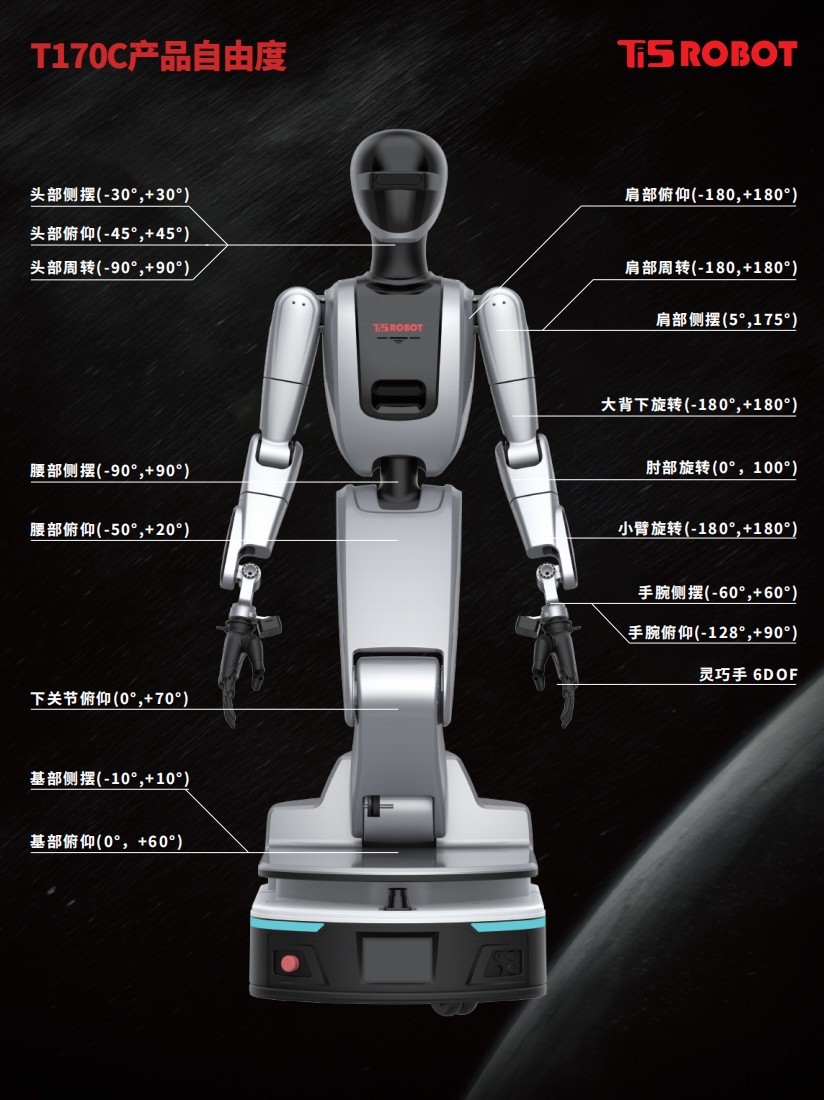

Drawing

1779687289538


1779687244415

1779437426224


Parameter table

ModelT170C Standard ModelT170C Flagship Model
Total height1.28-1.69m1.28-1.69m
gross weight90KG+50KG90KG+50KG
Arm span2m2m
Total number of active degrees of freedom2222
Dexterous Hand Model/Dexterous hands
Hand load/3 KG
Single-arm load3 KG3 KG
End-effector repeatability≤0.3mm≤0.3mm
Chassis Mobility0~2.0 m/s0~2.0 m/s
Joint actuator typeCAN/EtherCATCAN/EtherCAT
Joint reducer typeharmonicharmonic
Joint encoder resolution16/18bit16/18bit
Dual-arm end sensor/Six-dimensional force*2
chassisHigh-performance wheelsHigh-performance wheels
Battery capacity and voltage48V 10AH48V 10AH
Software AlgorithmDual-arm APIDual-arm API
MaterialStructure: Aluminum alloy, etc. Appearance: ABS, etc.Structure: Aluminum alloy, etc. Appearance: ABS, etc.
Visual perception/Head: Intel RealSense D435*1; Wrist: Intel RealSense D405*2
Control and computing power/JetsonAGX Orin 64G
Communication ProtocolJoint CANJoint CAN
Communication interfaceEthernetEthernet
