T140A

T140A
  • Introduction
Specializing in the R&D and manufacturing of intelligent robotic products, as well as intelligent manufacturing services, and providing specialized core components for humanoid robots.
Contact Now

Drawing

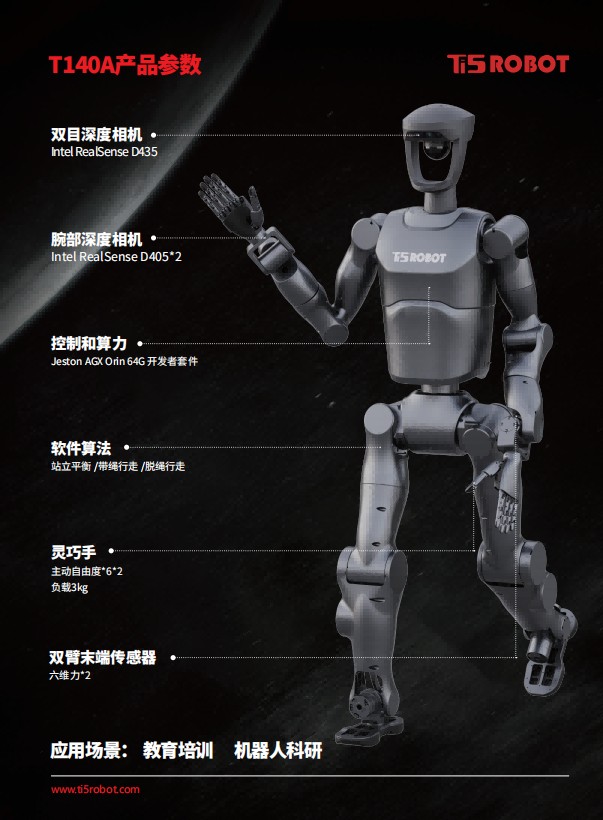

T140A产品参数

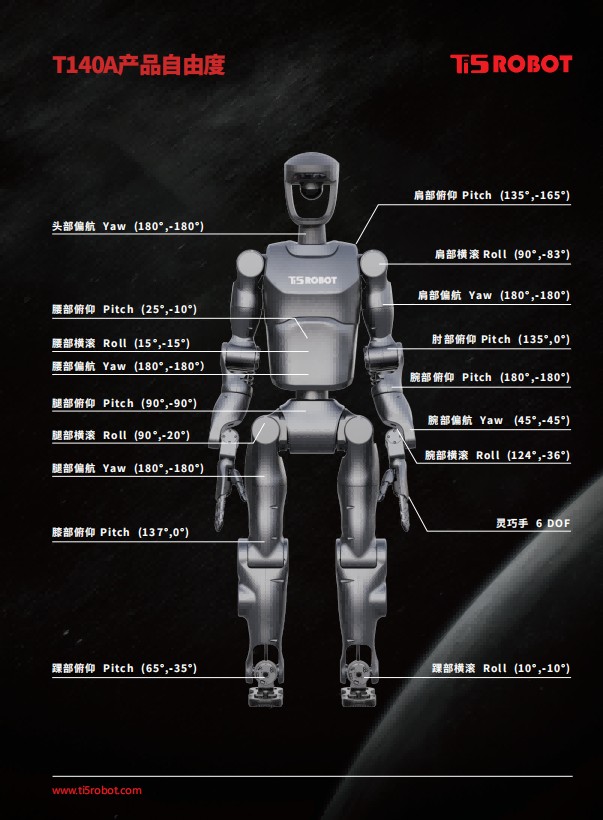

T140A产品自由度


Parameter table

ModelT140A Standard ModelT140A Flagship Model
Total height1.4m1.4m
gross weight45kg45kg
Arm span1.26m1.26m
Total number of degrees of freedom4242
Single-arm load3kg3kg
Number of joint motors3030
speed of travel1 m/s for both feet1 m/s for both feet
Hand load1.5KG1.5KG
End-effector repeatability≤0.3mm≤0.3mm
Dexterous HandHigh-precision dexterous hand (small)High-precision dexterous hand (small)
Dexterous hand automation66
End-effector sensors of both arms/Six-dimensional force * 2
Joint driver typeharmonicharmonic
Joint encoder resolution16/18bit16/18bit
Head visual perception/Intel RealSense D435i*1
Wrist visual perception/Intel RealSense D450*2
Obstacle avoidance perception/have
Control and computing powerJeston AGX Orin 64G Developer KitJeston AGX Orin 64G Developer Kit
Structural materialStructure: Aluminum alloy, etc. Shell: ABS, etc.Structure: Aluminum alloy, etc. Shell: ABS, etc.
Communication ProtocolJoint CAN/EC, Hand 485/CANJoint CAN/EC, Hand 485/CAN
