Ti5 EBLM/ARM SERIES

  • Introduction

Ti5 Robot is committed to creatinghigh-performance industry-standard robot products which is widely adaptable
Ti5 Robot aims to lower the threshold for customers to develop and use robots,thereby restructuring the robot and the industry automation industry chain.
Contact Now
Model 1
Model 2
Model 3
Model 4

Ti5 Robot Eblm-1

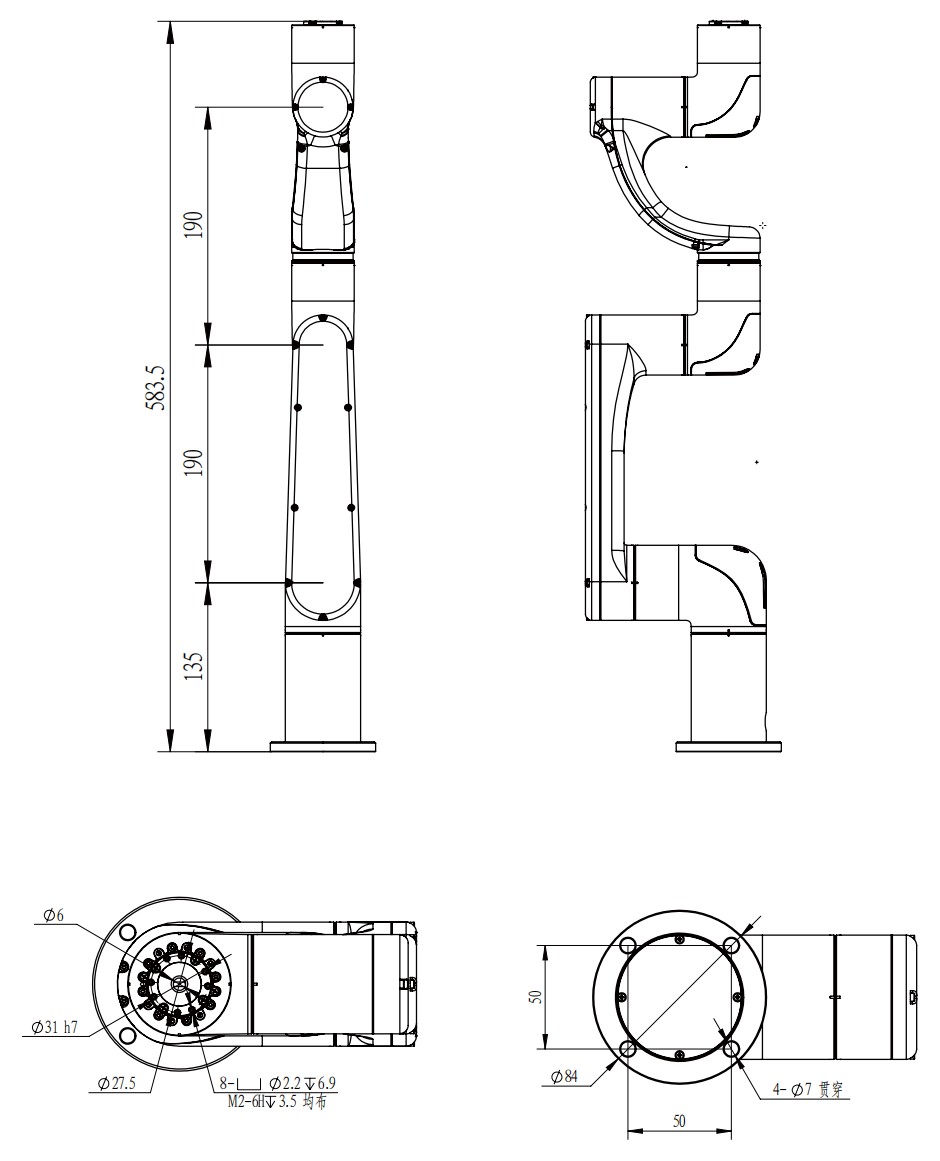

Drawing

xin2-1


Parameter table

NameUnitTi5 Robot Eblm-1
Rated loadkg1
weightkg2.6
Working radiusmm380
Repeatabilitymm±0.05
Degrees of freedom-6
Body material-aluminum alloy
Exterior Style-blue and white color scheme
Joint range of motion。J1(±180)  J2(±90)
J3(±135)  J4(±180)
J5(±150)  J6(±180)
Joint speed°/sJ1(180)  J2(180)
J3(180)  J4(220)
J5(220)  J6(220)
Typical speed on the tool sidem/s1
Ontology communication-Can/EtherCat
Temperature range℃-10~50
IP Level-IP50
Power supply voltage range-28-48VDC
Rated powerW50
Maximum powerW90
Standard cable lengthm1
Interfaces and Openness-ROS、Python、C++


Ti5 Robot Eblm-2

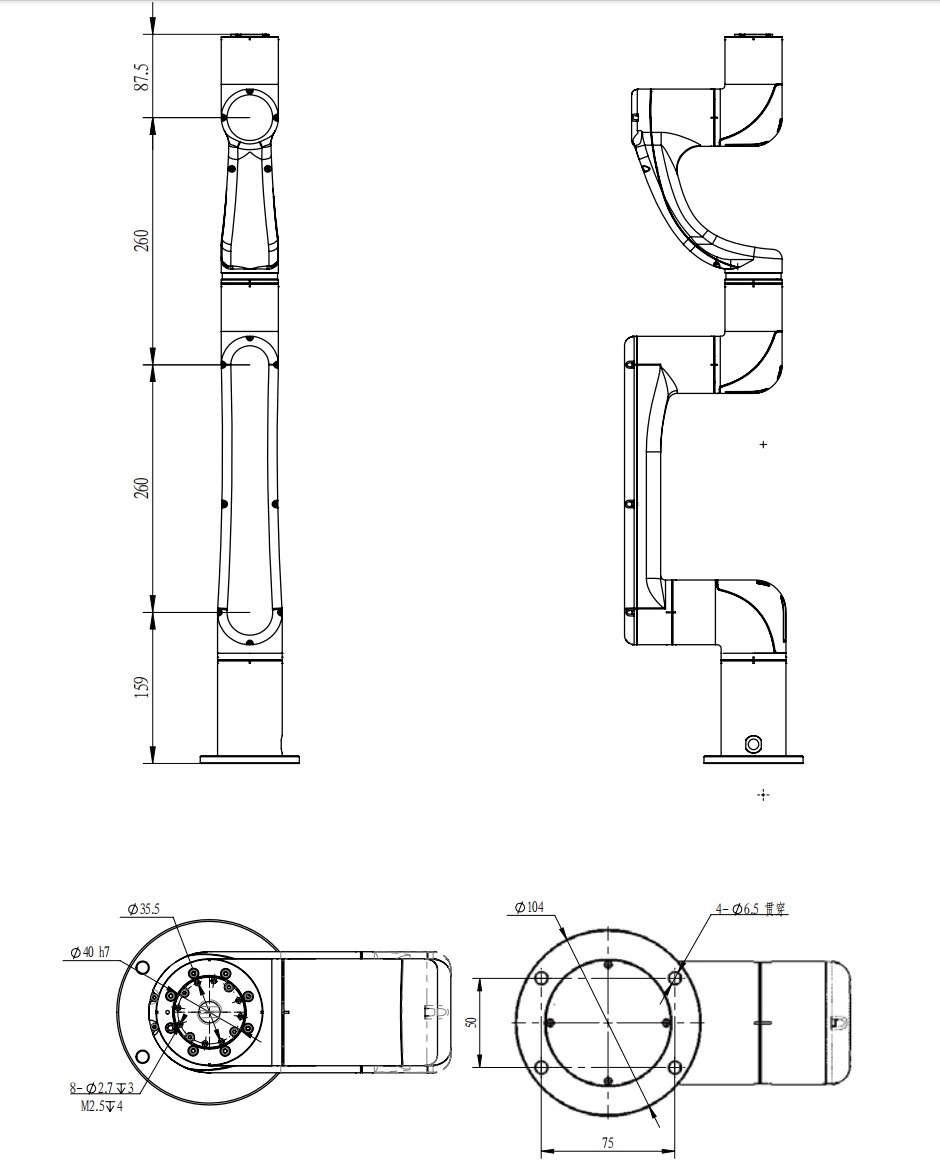

Drawing

xin2-2


Parameter table

NameUnitTi5 Robot Eblm-2
Rated loadkg2
weightkg4.5
Working radiusmm520
Repeatabilitymm±0.05
Degrees of freedom-6
Body material-aluminum alloy
Exterior Style-blue and white color scheme
Joint range of motion。J1(±180)  J2(±90)
J3(±135)  J4(±180)
J5(±150)  J6(±180)
Joint speed°/sJ1(180)  J2(180)
J3(180)  J4(220)
J5(220)  J6(220)
Typical speed on the tool sidem/s1
Ontology communication-Can/EtherCat
Temperature range℃-10~50
IP Level-IP50
Power supply voltage range-28-48VDC
Rated powerW80
Maximum powerW110
Standard cable lengthm1
Interfaces and Openness-ROS、Python、C++


Ti5 Robot Arm-3

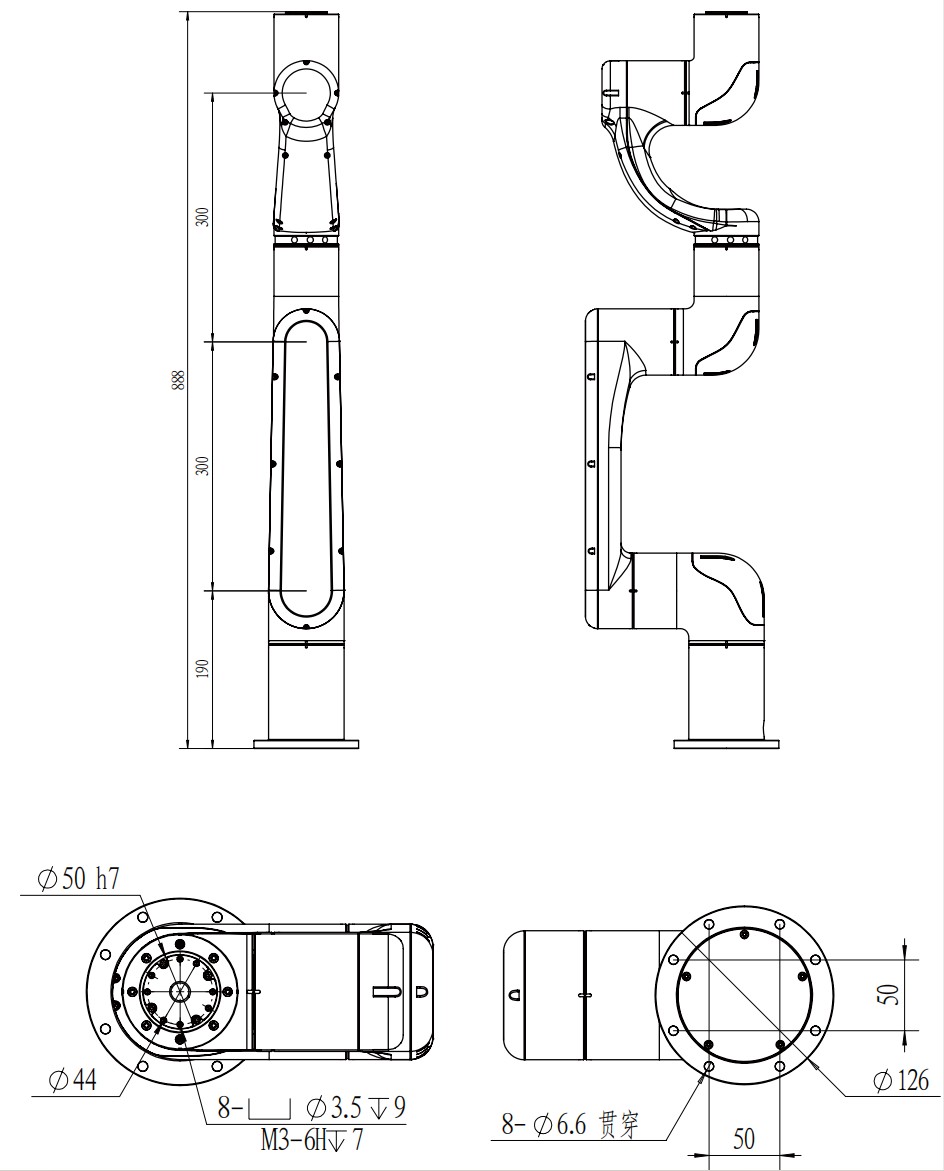

Drawing

xin2-3


Parameter table

NameUnitTi5 Robot Eblm-3
Rated loadkg3
weightkg12
Working radiusmm600
Repeatabilitymm±0.05
Degrees of freedom-6
Body material-aluminum alloy
Exterior Style-blue and white color scheme
Joint range of motion。J1(±180)  J2(±90)
J3(±135)  J4(±180)
J5(±150)  J6(±180)
Joint speed°/sJ1(180)  J2(180)
J3(180)  J4(220)
J5(220)  J6(220)
Typical speed on the tool sidem/s1
Ontology communication-Can/EtherCat
Temperature range℃-10~50
IP Level-IP50
Power supply voltage range-28-48VDC
Rated powerW280
Maximum powerW350
Standard cable lengthm1
Interfaces and Openness-ROS、Python、C++


Ti5 Robot Arm-5

Drawing

Parameter table
