Ti5 EBLM Series

  • Introduction

Ti5 Robot is committed to creatinghigh-performance industry-standard robot products which is widely adaptable
Ti5 Robot aims to lower the threshold for customers to develop and use robots,thereby restructuring the robot and the industry automation industry chain.
Contact Now
Model 1
Model 2

Ti5 Robot Eblm-1.5A

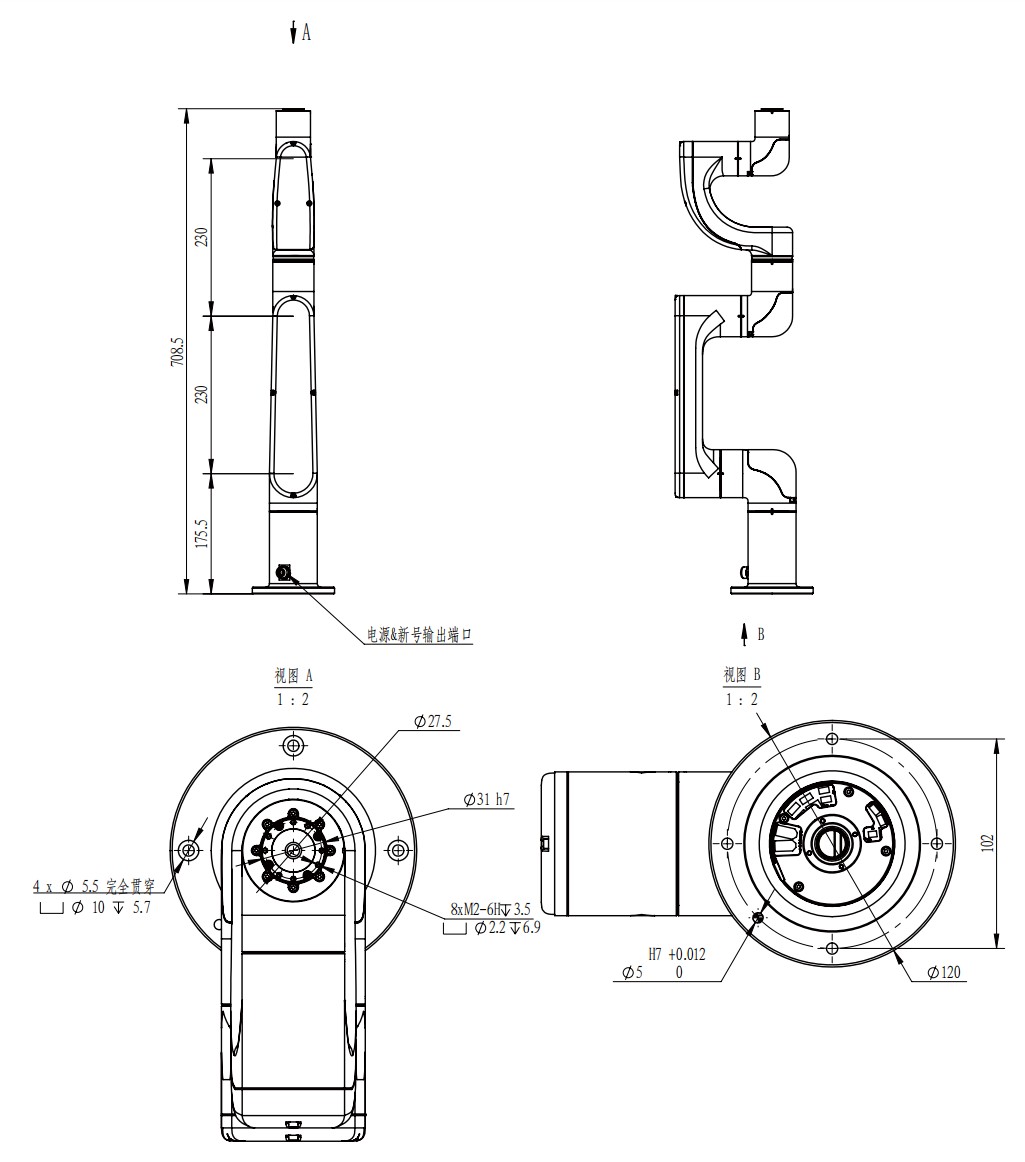

Drawing

xin1


Parameter table

NameUnitTi5 Robot Eblm-1.5A
Rated loadkg1.5
weightkg4.9
Working radiusmm460
Repeatabilitymm±0.5
Degrees of freedom-6
Body material-aluminum alloy
Exterior Style-Space Gray
Joint range of motion。J1(±180) J2(±180)
J3(±150) J4(±180)
J5(±180) J6(±180)
Joint speed°/sJ1(±280) J2(±180)
J3(±180) J4(±220)
J5(±220) J6(±220)
Typical speed on the tool sidem/s2
Ontology communication-Can/EtherCat
Temperature range℃-60
IP Level-IP50
Power supply voltage range-28-48VDC
Rated powerW65
Maximum powerW90
Standard cable lengthm1
Interfaces and Openness-ROS、Python、C++


Ti5 Robot Eblm-2A

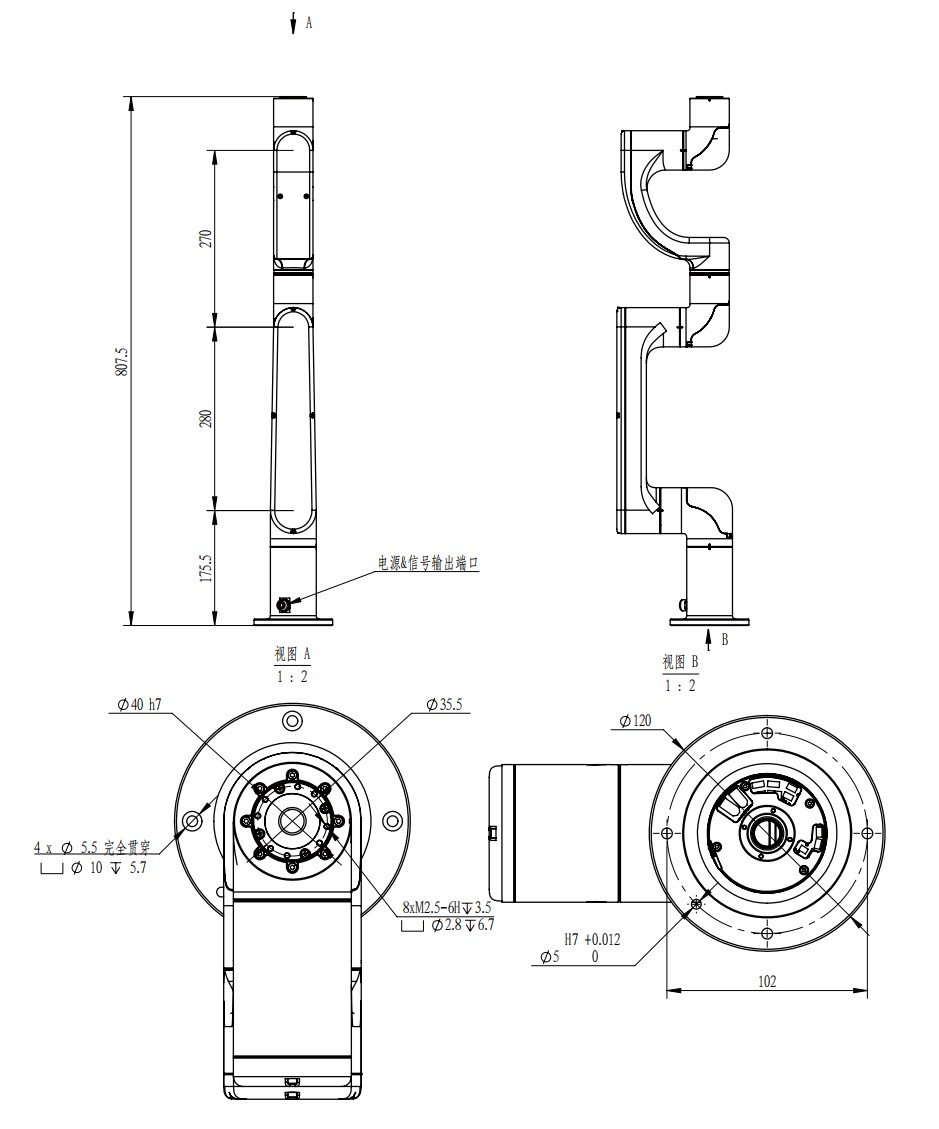

Drawing

xin2


Parameter table

NameUnitTi5 Robot Eblm-2A
Rated loadkg2
weightkg5.8
Working radiusmm550
Repeatabilitymm±0.5
Degrees of freedom-6
Body material-aluminum alloy
Exterior Style-Space Gray
Joint range of motion。J1(±180) J2(±180)
J3(±150) J4(±180)
J5(±180) J6(±180)
Joint speed°/sJ1(±180) J2(±180)
J3(±180) J4(±220)
J5(±220) J6(±220)
Typical speed on the tool sidem/s1
Ontology communication-Can/EtherCat
Temperature range℃-60
IP Level-IP50
Power supply voltage range-28-48VDC
Rated powerW85
Maximum powerW110
Standard cable lengthm1
Interfaces and Openness-ROS、Python、C++
